Buy Hioso HA7302CST 2 Port EPON OLT in kenya.

Hioso HA7302CST 2 Port EPON OLT Specs

Operating wavelength : 1310（RX）/1490（TX）
Optical power +0 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:32
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port 2 SC fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours

Description
Reviews

Buy the best Hioso HA7302CST 2 Port EPON OLT in kenya at flannetworks.

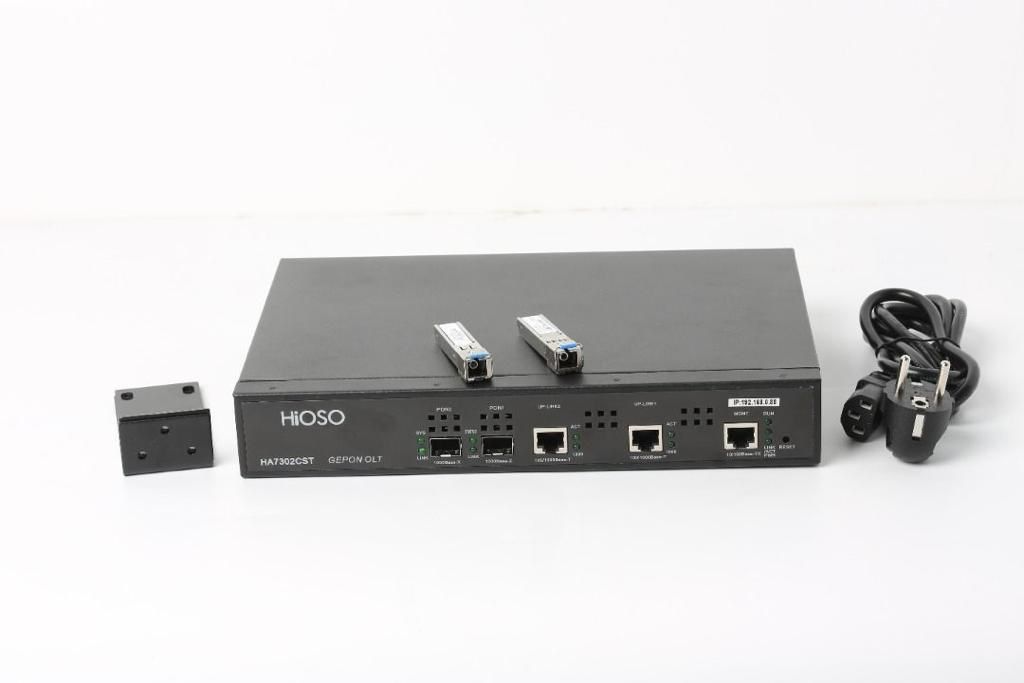

Hioso HA7302CST 2 Port EPON OLT

HiOSO HA7302CST PCBA is a standalone 2PORTS OLT board, no case and no power, working with different brands EPON XPON ONU and ODN, to establish passive optical network. Supports 2-PON access, 64 ONUs (maximum 128). It supports transmission distance from 10 to 20 km based on high bandwidth L2/L3 transition capability and full line speed. Supports WEB/SNMP/CLI management.

Key features

Provide 2 SFP PON ports, 2 1000M RJ45 uplink ports, 1 10/100M RJ45 management port
Support SNMP management and WEB management
Each PON port supports 1.32 split rate, 64 ONUs total access, max 128
Distance can reach 20 km in Split Ratio of 1:32, max. from 1:64
Support to work with HA400/HA7200 series ONUs to establish passive network
Support to hang on 1u rack, internal fan, better for heat dissipation and reliability operation
Apply for city, village and surveillance fiber network,
