Buy SOPTO Standalone 4 PON EPON OLT in kenya

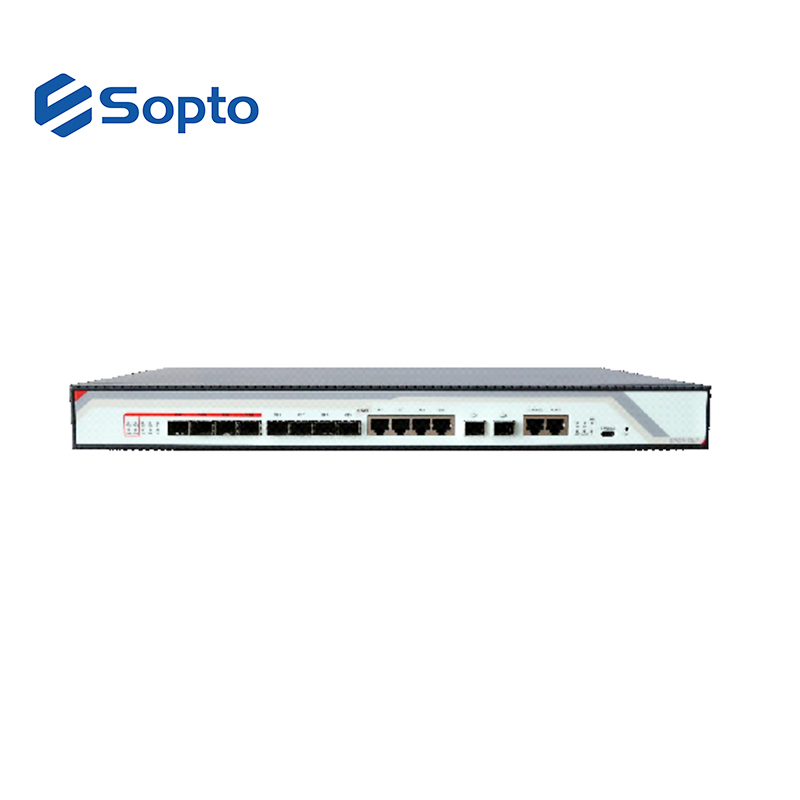

SOPTO Standalone 4 PON EPON OLT
Specifications:
- Size : 440*230mm*44mm(L*W*H)
- Weight : 3.4kg
- Power Consumption : 34W
- Power supply : 220VAC, AC: 90V～240V，47/63Hz
- Working environment : Working temperature = 0～50℃, Storage temperature = -40～85℃Relative, Relative humidity = 5～90% (Non-condensing)
- Management Mode : SNMP, Telnet, CLI management mode.
- Management Port : 1*10/100/1000Mauto-negotiable outband port, 1CONSOLE port
- Uplink Port : QTY = 8, Copper = 10/100/1000M auto-negotiable,RJ45:4pcs, SFP = 4 SFP slots,
- PON Port : Quantity = 4, Physical interface = SFP slot, Connector Type = 1000BASE-PX20+ , Max splitting ratio = 1:64
- PON Port attribute : Transmission distance = 20KM, Port rate = Symmetrical 1.25Gbps, Wavelength = 1490nm TX,1310nm RX, Interface type = SC/PC
- Fiber type = 9/125μm SMF (Single Mode Fiber), TX Power = +2.5～+7dBm, Rx Sensitivity = -27dBm, Saturation power = -6dBm
KSh70,000.00
Buy the best SOPTO Standalone 4 PON EPON OLT in kenya at flannetworks
SOPTO Standalone 4 PON EPON OLT
provides 4GE and 4 SFP slots interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio. The OLT can be used for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. 4PON EPON OLT is a high-performance product.
Key features
- Four pon port in 1U pizza-box
- Four uplink GE optical SFP ports
- Four uplink GE RJ45 copper ports
- NMS management based on standard SNMP protocol
- Double 220VAC or -48VDC redundancy power supply
- Double 220VAC or -48VDC redundancy power supply
For application Diagram
